CNC plasma tables are advanced, versatile metalworking tools that are revolutionizing the manufacturing industry. Operating with a powerful, cutting-edge plasma torch, these machines can deliver precise and clean cuts in a variety of shapes and sizes. With an integrated Computer Numerical Control (CNC) system that guides each cut, CNC plasma tables can handle everything from intricate designs to large-scale production projects.
The market for CNC plasma tables has grown significantly over the last decade. A plasma cutter can change the game for your metalworking process, but it’s important to choose the right plasma cutting table for your needs. This guide will provide you with everything you need to know about selecting the right plasma cutting table size, especially if you’re a beginner interested in using plasma cutting for the first time.
Choosing the Right CNC Plasma Table Size
A CNC plasma cutter has many components that work together to provide cutting-edge metalworking capabilities, and selecting the right parts and software will streamline the plasma-cutting process. You’ll need to think about factors like different torch options and which drawing software you’ll use for your designs. But table size is also critical to ensure you have the workspace you need without limiting yourself to smaller projects and restricted movement.
When narrowing down your size options, consider what you plan to cut on your CNC plasma table. The best CNC plasma table size for your shop depends on:
- Industry: Are you a hobbyist choosing your first plasma cutting table? Or are you adding a plasma cutter to your manufacturing or production operation? The size of your facility and the volume of work you anticipate make a difference in the size and capabilities of the table you buy.
- Material: Will you be working primarily with mild steel, aluminum, or stainless steel, or with a mix of metals? It’s also good to know what maximum thickness you plan to cut. Material compatibility and thickness capacity determine what metals you can cut and how clean your results will be.
- Material Size: The size of the metal sheets you’ll be cutting determines the cutting area you’ll require. It’s best to choose a table that’s slightly larger than your typical material dimensions to allow for clamps and optimal cutting paths.
It’s also important to think ahead when selecting your table size – do you think you’ll work on larger projects down the road? Investing in a slightly larger table can save you from an expensive upgrade later on.
Other CNC Plasma Table Considerations
Table size is just one piece of the puzzle when it comes to selecting the right CNC plasma cutting machine. You should also consider:
- Cutting precision and tolerances: High-precision tables can consistently cut within tight tolerances, reducing post-processing and material waste. However, high-precision models typically sit at the top of table price points. Consider the level of precision you need for your application, as well as your budget.
- CNC software: The CNC software integrates with your cutting table and determines how accurately your table cuts your designs. Entry-level software tends to be more intuitive. Experienced users might look for advanced features like nesting, parametric design, or automated toolpaths.
- Frame construction: Strong frame construction means more precise cuts and longer machine life. We recommend looking for solid steel builds with quality welds, rigidity, and minimal vibration.
- Torch types: Standard plasma torches work for most cuts, especially at the beginner level. High-definition torches offer cleaner cuts for intricate projects that demand a high level of precision.
Best CNC Plasma Tables for Beginners
CNC table dimensions generally fall into three ranges, each one best suited for small, medium, or high volume production:
- Small Tables (2’×2’ to 4’×4’): Perfect for hobbyists or small shops with limited space.
- Medium Tables (4’×8’ to 5’×10’): Ideal for light-to-medium industrial use and moderate production volumes.
- Large Tables (6’×12’ and larger): Built for heavy-duty industrial use and high-volume production.
The most popular beginner CNC plasma table sizes are 4′x4′, 4′x8′, and 5′x10′. While there are 2’x2’ tables on the market, they can be very limiting for most applications, especially if you think you will need a larger table size in the future.

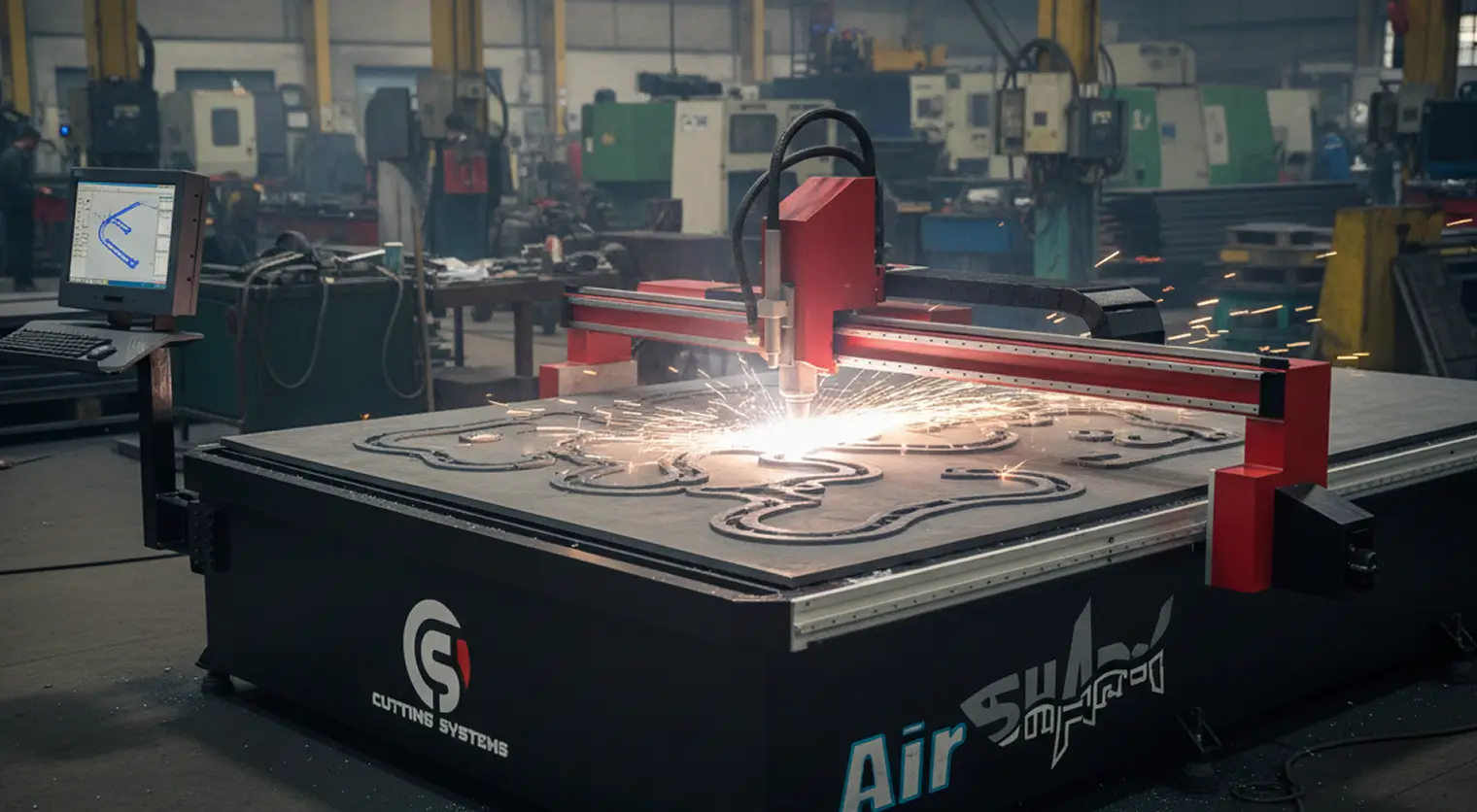

At Cutting Systems, we manufacture CNC plasma cutting machines for light-, medium-, and heavy-duty industrial applications. Our Shark CNC Plasma Cutting Machine is designed for plate cutting up to 2” thick (3” for oxyfuel cutting) and comes in standard table sizes 4’x8’, 5′x10′, and 6’x12’. Other systems, like our Raptor CNC Plasma Cutting Machine, are built for large-scale production and can be completely customized to fit your needs.
Design a Custom CNC Plasma Table With Cutting Systems
Standard-size tables work well for small-to-medium cutting projects, but you may want to consider a custom CNC plasma table if you’re working on larger projects or using irregular materials.
Cutting Systems can engineer a custom CNC cutting machine to meet your requirements, ensuring the most efficient solution for your steel-cutting operations. We offer various customizable controls and features to create the perfect fit for your industry. Our CNC machines come equipped with:
- Hypertherm PC-based CNC controls
- Heavy-duty welded steel frames
- Precision-machined gantry beams
- Yaskawa drive systems with EtherCAT technology
Reach out to Cutting Systems today to discuss your custom-engineered CNC plasma table options.
FAQs About CNC Plasma Table Sizing
What are the ventilation requirements for different table sizes?
Using any plasma cutter requires proper ventilation to keep you safe and your equipment running optimally. Medium-to-large cutting tables need aggressive ways to control plasma fumes, such as fume extractors, dust collectors, and downdraft systems.
What are some common mistakes to avoid when choosing a CNC plasma table size?
The biggest mistake beginners make is buying a table that’s too small for their needs, or a table that’s too large for their workspace. It’s important to consider both factors when shopping for a CNC plasma table, so you don’t end up with a machine you’ll quickly outgrow or one that won’t fit in your shop.
Can I upgrade to a larger table if my needs change?
Yes, but it’s best to choose a slightly larger table than you need from the start. If your CNC plasma table isn’t large enough for your production needs and you’re in the market for a new one, we offer remanufactured machines at a lower cost than new tables.
